Medium Voltage XLPE Insulated Cable to IEC 60502-2
Applications
These cables are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors,
underground and in water as well as for installation on cable trays for industries.
Standards
IEC 60228; IEC 60502-2

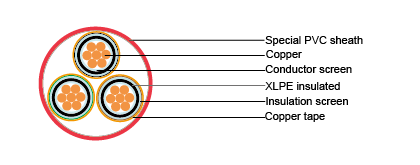

Construction
Conductor:
Stranded bare copper (class 2)
Conductor screen:
This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple
extrusion process over the conductor along with the insulation and the insulation screen.
Insulation:
XLPE
Insulation screen:
This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process
over the insulation.
Core identification:
1 Core: Natural
3 Cores: Black, Green, Brown
Outer sheath: Special PVC. Color: red. U.V resistance can be offered upon request.
Properties
Fire retardance: IEC 60332-3-22
Operating temperature: -20~60°C
Max. conductor operating temperature: 90°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
